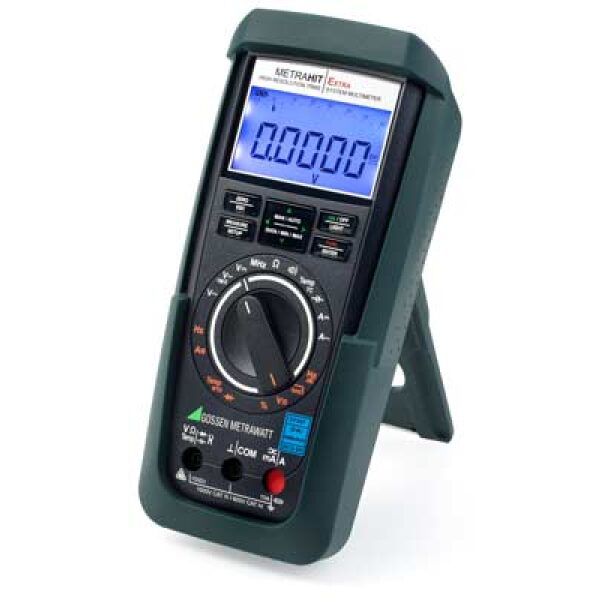

[:et]Specific features of the EXTRA multimeter:
- 26 multimeter functions
- Data logger function with 2048 kB memory capacity, i.e. for up to 61,600 measured values
- Infrared interface to PC for data exchange and parameters configuration (optional: IR-USB adapter and METRAwin10 software)
- Power pack connector socket for operation without batteries
- TRMS AC and AC+DC voltage measurement, bandwidths of up to 100 kHz
- TRMS AC and AC+DC current measurement, bandwidths of up to 10 kHz
- dB measuring function
- Adjustable clamp factor for measurement with current clamp sensors and transformers
Common features of the E series:
- Resolution: ± 60,000 digits, 4 6/7-place
- System hook-up via infrared interface
- Communication with PC by means of METRAwin10
- 3 connector jacks with patented automatic blocking sockets (ABS)
- TRMS AC and AC / DC function
- Voltage measurement with a basic accuracy of ± 0.05% (V DC)
- Automatic and manual measuring range selection
- Automatic storage of measured values
- Large, light-blue illuminated display with extra-large characters (15 mm) and an analog bar graph for dynamic processes
- Separate battery and fuse compartments
- IP 52 protection against dust and water
- Measuring categories: 1000 V CAT III and 600 V CAT IV
- Made in Germany
- DAkkS calibration certificate included
